0. 배경
자세교정을 detect하여 교정하는 알람을 내세우는 프로젝트 중 알람을 몇 시간마다, 몇 분에, 언제 시작할지 정하는 알람 기능이 필요했다. '시간을 선택할 때 시/분/오전&오후라는 정보를 사용자로부터 멋들어진(?) ui로 받아내는 기능이 없는지 구글링을 해봤다.
처음에는 핸드폰에 있는 알람 앱처럼 다이얼로 돌린다던지, 스크롤 애니메이션을 적용시키고 싶었지만 그러려면 jquery와 이것 저것 다양한 플러그인을 설치해야 한다. 플러그인을 설치하면 웹페이지가 더 무거워져서 할 수 없이 더 간단한 기능으로 구현해보고자 했다.
그렇게 찾아낸 것이 TimePicki.js다.

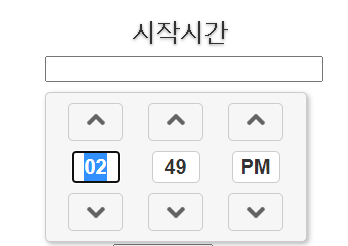

이런식으로 간단하게 입력하고 데이터를 받을 수 있는 기능이다. 직접 타이핑은 불가하고 오로지 화살표 버튼 클릭을 통해서만 시간 출력이 가능하다.
[html]
html문서는 매우 간단하다. 복잡한 기능은 거의 js파일에서 처리한다.
<head>
<script type='text/javascript'src='js/jquery.js'></script>
<script type='text/javascript'src='js/timepicki.js'></script>
<script type='text/javascript'src='js/timepicki_min.js'></script>
<!-- Bootstrap core CSS -->
<link rel="stylesheet" href="css/bootstrap.css">
<link rel='stylesheet' type='text/css' href='css/styforalse.css'/>
<link rel='stylesheet' href='css/timepicki.css'>
</head>
<body>
<div class="window-wrap">
<div class="inner cover indexpicker">
<h3>시작시간</h3>
<input id='timepicker1' type='text'name='timepicker1'/>
</div>
</div>
<script src="js/jquery.min.js"></script>
<script src="js/timepicki.js"></script>
<script>
$('#timepicker1').timepicki();
</script>
<script src="js/bootstrap.min.js"></script>
</body>
[CSS]
css는 세 개의 파일로 구현된다. timepicki 기능 자체에 대한 css, 위의 html에서 배치할 css, bootstrap.css다.
1. timepicki.css
/*
Created on: 17 Sep, 2014, 4:29:37 PM
Author: senthil
*/
.ti_tx,
.mi_tx,
.mer_tx {
width: 100%;
text-align: center;
margin: 10px 0;
}
.time,
.mins,
.meridian {
width: 60px;
float: left;
margin: 0 10px;
font-size: 20px;
color: #2d2e2e;
font-family: arial;
font-weight: 700;
}
.prev,
.next {
cursor: pointer;
padding: 18px;
width: 28%;
border: 1px solid #ccc;
margin: auto;
background: url(/img/arrow.png) no-repeat;
border-radius: 5px;
}
.prev:hover,
.next:hover {
background-color: #ccc;
}
.next {
background-position: 50% 150%;
}
.prev {
background-position: 50% -50%;
}
.time_pick {
position: relative;
}
.timepicker_wrap {
padding: 10px;
border-radius: 5px;
z-index: 998;
display: none;
box-shadow: 2px 2px 5px 0 rgba(50,50,50,0.35);
background: #f6f6f6;
border: 1px solid #ccc;
float: left;
position: absolute;
top: 27px;
left: 0;
}
.arrow_top {
position: absolute;
top: -10px;
left: 20px;
background: url(../images/top_arr.png) no-repeat;
width: 18px;
height: 10px;
z-index: 999;
}
input.timepicki-input {
background: none repeat scroll 0 0 #FFFFFF;
border: 1px solid #CCCCCC;
border-radius: 5px 5px 5px 5px;
float: none;
margin: 0;
text-align: center;
width: 70%;
}
a.reset_time {
float: left;
margin-top: 5px;
color: #000;
}
2. styforalse.css
style for alarmsetting이라는 뜻인데, 쓸데없이 길게 만든 것 같다... 이름은 대충 짓자.
이미지 파일도 필요하니 깃헙 폴더에서 다운받자.
.window-wrap {
padding: 30px;
}
input[type='text'] {
color:#333333;
}
.myclass input[type='text']{
color:#5CB85C
}
.indexpicker .time_pick {
width:270px;
display:inline-block;
}
.indexpicker .time_pick > input { width:100%; margin-bottom:20px;}
.min-select {
justify-content:flex-end;
width: 60px;
height: 30px;
}
.hour-select {
justify-content:flex-end;
width: 100px;
height: 30px;
}
3. bootsrap.css
구현을 위해서는 위 파일도 필요하다. 참고 링크에 들어가서 깃헙에 가보면 있다.
[javascript]
/*
* Author: @senthil2rajan
* plugin: timepicker
* website: senthilraj.github.io/Timepicki
*/
(function($) {
$.fn.timepicki = function(options) {
var defaults = {
format_output: function(tim, mini, meri) {
if (settings.show_meridian) {
// limit hours between 1 and 12 - inculsive.
tim = Math.min(Math.max(parseInt(tim), 1), 12);
if (tim < 10)
tim = "0" + tim;
mini = Math.min(Math.max(parseInt(mini), 0), 59);
if (mini < 10)
mini = "0" + mini;
return tim + ":" + mini + " " + meri;
} else {
// limit hours between 0 and 23 - inculsive.
tim = Math.min(Math.max(parseInt(tim), 0), 23);
if (tim < 10)
tim = "0" + tim;
mini = Math.min(Math.max(parseInt(mini), 0), 59);
if (mini < 10)
mini = "0" + mini;
//mini = Math.min(Math.max(parseInt(mini), 0), 59);
return tim + ":" + mini;
}
},
increase_direction: 'up',
custom_classes: '',
min_hour_value: 1,
max_hour_value: 12,
show_meridian: true,
step_size_hours: '1',
step_size_minutes: '1',
overflow_minutes: false,
disable_keyboard_mobile: false,
reset: false,
on_change: null,
input_writable: false
};
var settings = $.extend({}, defaults, options);
return this.each(function() {
var ele = $(this);
var ele_hei = ele.outerHeight();
ele_hei += 10;
$(ele).wrap("<div class='time_pick'>");
var ele_par = $(this).parents(".time_pick");
// developer can specify which arrow makes the numbers go up or down
var top_arrow_button = (settings.increase_direction === 'down') ?
"<div class='prev action-prev'></div>" :
"<div class='prev action-next'></div>";
var bottom_arrow_button = (settings.increase_direction === 'down') ?
"<div class='next action-next'></div>" :
"<div class='next action-prev'></div>";
var new_ele = $(
"<div class='timepicker_wrap " + settings.custom_classes + "'>" +
"<div class='arrow_top'></div>" +
"<div class='time'>" +
top_arrow_button +
"<div class='ti_tx'><input type='text' class='timepicki-input'" + (settings.disable_keyboard_mobile ? "readonly" : "") + "></div>" +
bottom_arrow_button +
"</div>" +
"<div class='mins'>" +
top_arrow_button +
"<div class='mi_tx'><input type='text' class='timepicki-input'" + (settings.disable_keyboard_mobile ? "readonly" : "") + "></div>" +
bottom_arrow_button +
"</div>");
if(settings.show_meridian){
new_ele.append(
"<div class='meridian'>" +
top_arrow_button +
"<div class='mer_tx'><input type='text' class='timepicki-input' readonly></div>" +
bottom_arrow_button +
"</div>");
}
if(settings.reset){
new_ele.append(
"<div><a href='#' class='reset_time'>Reset</a></div>");
}
ele_par.append(new_ele);
var ele_next = $(this).next(".timepicker_wrap");
var ele_next_all_child = ele_next.find("div");
var inputs = ele_par.find('input');
$('.reset_time').on("click", function(event) {
ele.val("");
close_timepicki();
});
$(".timepicki-input").keydown(function (keyevent) {
// our goal here is very simple.
// no matter what the user presses
// we must ensure that the values in our
// timepicki inputs are valid, and that pressing
// enter does not submit the form if the
// input field on which timepicki is applied is a part of a form.
// With that in mind. We proceed like this:
// 1) If enter is pressed:
// i) Prevent default operations - form submission.
// ii) close_timepicki().
// iii) return.
//
// 2) For any other key presses:
// i) realize that we cannot check what the user has typed
// just yet, because this function is a handler
// that runs before any text is rendered in the input
// box.
// ii) So, register a function validate() that will execute right
// after the keypress character is rendered. All validation
// is done inside validate().
//-----------------------------------------------------------------------------------
// NOTE:.change() event does not work here, as it is called when input looses focus|
//-----------------------------------------------------------------------------------
// (1)
// prevent potential form submission, if enter is pressed.
if (keyevent.keyCode == 13) {
keyevent.preventDefault();
set_value();
close_timepicki();
// nothing to do here.
return;
}
// the grand father div specifies the type of
// input that we are dealing with. if the grandFatherDiv
// has a class "time", then its a time input, if it has a class
// "mins", then its a minutes input, and if it has a class "meridian"
// then its a meridian input.
var grandfatherDiv = $(this).parent().parent();
// aliasing for readability
var input = $(this);
// pick the value from the field,
// because before change the field always has a
// valid value.
var lastValue = input.val();
// (2)
// validate() function validates the
// user input.
function validate() {
var isValidNumber = /^\d+$/.test(input.val());
var isEmpty = input.val() === "";
if (grandfatherDiv.hasClass("time")) { /// HOUR
// if its a valid number.
// clip it and assign it.
if (isValidNumber) {
// clip number.
var hours = (settings.show_meridian) ?
Math.min(Math.max(parseInt(input.val()), 1), 12) : // for 12 hour date picker.
Math.min(Math.max(parseInt(input.val()), 0), 23); // for 24 hours date picker.
// assign number.
input.val(hours);
} else if(!isEmpty) {
// else if the number is invalid and not empty
// assign the lastValue
input.val(lastValue);
}
} else if (grandfatherDiv.hasClass("mins")) { /// MINUTE
// if its a valid number.
// clip it and assign it.
if (isValidNumber) {
// clip number.
var minutes = Math.min(Math.max(parseInt(input.val()), 0), 59);
// assign number.
input.val(minutes);
} else if (!isEmpty) {
// else if the number is invalid and not empty
// assign the lastValue
input.val(lastValue);
}
} else if (grandfatherDiv.hasClass("meridian")) { /// MERIDIAN
// key presses should not affect
// meridian - except up and down
// which are handled else where
// and will still work.
keyevent.preventDefault();
} else {
// alert("This should not happen.");
}
}
// wrapValidate() ensures that validate()
// is not called more than once. 'done'
// is a flag used to ensure this.
done = false;
function wrapValidate() {
if (!done) {
validate();
done = true;
}
}
// enqueue wrapValidate function before any thing
// else takes place. For this we use setTimeout()
// with 0
setTimeout(wrapValidate, 0);
});
$(document).on('touchstart', function (event) {
if (!is_element_in_timepicki($(event.target))) {
close_timepicki();
}
});
// open or close time picker when clicking
$(document).on("click", function(event) {
if (!$(event.target).is(ele_next) && ele_next.css("display")=="block" && !$(event.target).is($('.reset_time'))) {
if (!$(event.target).is(ele)) {
set_value(event, !is_element_in_timepicki($(event.target)));
} else {
var ele_lef = 0;
ele_next.css({
"top": ele_hei + "px",
"left": ele_lef + "px"
});
open_timepicki();
}
}
});
// open the modal when the user focuses on the input
ele.on('focus', open_timepicki);
// select all text in input when user focuses on it
inputs.on('focus', function() {
var input = $(this);
if (!input.is(ele)) {
input.select();
}
});
// allow user to increase and decrease numbers using arrow keys
inputs.on('keydown', function(e) {
var direction, input = $(this);
// UP
if (e.which === 38) {
if (settings.increase_direction === 'down') {
direction = 'prev';
} else {
direction = 'next';
}
// DOWN
} else if (e.which === 40) {
if (settings.increase_direction === 'down') {
direction = 'next';
} else {
direction = 'prev';
}
}
if (input.closest('.timepicker_wrap .time').length) {
change_time(null, direction);
} else if (input.closest('.timepicker_wrap .mins').length) {
change_mins(null, direction);
} else if (input.closest('.timepicker_wrap .meridian').length && settings.show_meridian) {
change_meri(null, direction);
}
});
// close the modal when the time picker loses keyboard focus
inputs.on('blur', function() {
setTimeout(function() {
var focused_element = $(document.activeElement);
if (focused_element.is(':input') && !is_element_in_timepicki(focused_element)) {
set_value();
close_timepicki();
}
}, 0);
});
function is_element_in_timepicki(jquery_element) {
return $.contains(ele_par[0], jquery_element[0]) || ele_par.is(jquery_element);
}
function set_value(event, close) {
// use input values to set the time
var tim = ele_next.find(".ti_tx input").val();
var mini = ele_next.find(".mi_tx input").val();
var meri = "";
if(settings.show_meridian){
meri = ele_next.find(".mer_tx input").val();
}
if (tim.length !== 0 && mini.length !== 0 && (!settings.show_meridian || meri.length !== 0)) {
// store the value so we can set the initial value
// next time the picker is opened
ele.attr('data-timepicki-tim', tim);
ele.attr('data-timepicki-mini', mini);
if(settings.show_meridian){
ele.attr('data-timepicki-meri', meri);
// set the formatted value
ele.val(settings.format_output(tim, mini, meri));
}else{
ele.val(settings.format_output(tim, mini));
}
}
//Call user on_change callback function if set
if (settings.on_change !== null) {
settings.on_change(ele[0]);
}
if (close) {
close_timepicki();
}
}
function open_timepicki() {
set_date(settings.start_time);
ele_next.fadeIn();
if(!settings.input_writable) {
// focus on the first input and select its contents
var first_input = ele_next.find('input:visible').first();
first_input.focus();
}
// if the user presses shift+tab while on the first input,
// they mean to exit the time picker and go to the previous field
var first_input_exit_handler = function(e) {
if (e.which === 9 && e.shiftKey) {
first_input.off('keydown', first_input_exit_handler);
var all_form_elements = $(':input:visible:not(.timepicki-input)');
var index_of_timepicki_input = all_form_elements.index(ele);
var previous_form_element = all_form_elements.get(index_of_timepicki_input-1);
previous_form_element.focus();
}
};
first_input.on('keydown', first_input_exit_handler);
}
function close_timepicki() {
ele_next.fadeOut();
}
function set_date(start_time) {
var d, ti, mi, mer;
// if a value was already picked we will remember that value
if (ele.is('[data-timepicki-tim]')) {
ti = Number(ele.attr('data-timepicki-tim'));
mi = Number(ele.attr('data-timepicki-mini'));
if(settings.show_meridian){
mer = ele.attr('data-timepicki-meri');
}
// developer can specify a custom starting value
} else if (typeof start_time === 'object') {
ti = Number(start_time[0]);
mi = Number(start_time[1]);
if(settings.show_meridian){
mer = start_time[2];
}
// default is we will use the current time
} else {
d = new Date();
ti = d.getHours();
mi = d.getMinutes();
mer = "AM";
if (settings.show_meridian){
if (ti == 0) { // midnight
ti = 12;
} else if (ti == 12) { // noon
mer = "PM";
} else if (ti > 12) {
ti -= 12;
mer = "PM";
}
}
}
if (ti < 10) {
ele_next.find(".ti_tx input").val("0" + ti);
} else {
ele_next.find(".ti_tx input").val(ti);
}
if (mi < 10) {
ele_next.find(".mi_tx input").val("0" + mi);
} else {
ele_next.find(".mi_tx input").val(mi);
}
if(settings.show_meridian){
if (mer < 10) {
ele_next.find(".mer_tx input").val("0" + mer);
} else {
ele_next.find(".mer_tx input").val(mer);
}
}
}
function change_time(cur_ele, direction) {
var cur_cli = "time";
var cur_time = Number(ele_next.find("." + cur_cli + " .ti_tx input").val());
var ele_st = Number(settings.min_hour_value);
var ele_en = Number(settings.max_hour_value);
var step_size = Number(settings.step_size_hours);
if ((cur_ele && cur_ele.hasClass('action-next')) || direction === 'next') {
if (cur_time + step_size > ele_en) {
var min_value = ele_st;
if (min_value < 10) {
min_value = '0' + min_value;
} else {
min_value = String(min_value);
}
ele_next.find("." + cur_cli + " .ti_tx input").val(min_value);
} else {
cur_time = cur_time + step_size;
if (cur_time < 10) {
cur_time = "0" + cur_time;
}
ele_next.find("." + cur_cli + " .ti_tx input").val(cur_time);
}
} else if ((cur_ele && cur_ele.hasClass('action-prev')) || direction === 'prev') {
var minValue = Number(settings.min_hour_value)
if (cur_time - step_size < minValue) {
var max_value = ele_en;
if (max_value < 10) {
max_value = '0' + max_value;
} else {
max_value = String(max_value);
}
ele_next.find("." + cur_cli + " .ti_tx input").val(max_value);
} else {
cur_time = cur_time - step_size;
if (cur_time < 10) {
cur_time = "0" + cur_time;
}
ele_next.find("." + cur_cli + " .ti_tx input").val(cur_time);
}
}
}
function change_mins(cur_ele, direction) {
var cur_cli = "mins";
var cur_mins = Number(ele_next.find("." + cur_cli + " .mi_tx input").val());
var ele_st = 0;
var ele_en = 59;
var step_size = Number(settings.step_size_minutes);
if ((cur_ele && cur_ele.hasClass('action-next')) || direction === 'next') {
if (cur_mins + step_size > ele_en) {
ele_next.find("." + cur_cli + " .mi_tx input").val("00");
if(settings.overflow_minutes){
change_time(null, 'next');
}
} else {
cur_mins = cur_mins + step_size;
if (cur_mins < 10) {
ele_next.find("." + cur_cli + " .mi_tx input").val("0" + cur_mins);
} else {
ele_next.find("." + cur_cli + " .mi_tx input").val(cur_mins);
}
}
} else if ((cur_ele && cur_ele.hasClass('action-prev')) || direction === 'prev') {
if (cur_mins - step_size <= -1) {
ele_next.find("." + cur_cli + " .mi_tx input").val(ele_en + 1 - step_size);
if(settings.overflow_minutes){
change_time(null, 'prev');
}
} else {
cur_mins = cur_mins - step_size;
if (cur_mins < 10) {
ele_next.find("." + cur_cli + " .mi_tx input").val("0" + cur_mins);
} else {
ele_next.find("." + cur_cli + " .mi_tx input").val(cur_mins);
}
}
}
}
function change_meri(cur_ele, direction) {
var cur_cli = "meridian";
var ele_st = 0;
var ele_en = 1;
var cur_mer = null;
cur_mer = ele_next.find("." + cur_cli + " .mer_tx input").val();
if ((cur_ele && cur_ele.hasClass('action-next')) || direction === 'next') {
if (cur_mer == "AM") {
ele_next.find("." + cur_cli + " .mer_tx input").val("PM");
} else {
ele_next.find("." + cur_cli + " .mer_tx input").val("AM");
}
} else if ((cur_ele && cur_ele.hasClass('action-prev')) || direction === 'prev') {
if (cur_mer == "AM") {
ele_next.find("." + cur_cli + " .mer_tx input").val("PM");
} else {
ele_next.find("." + cur_cli + " .mer_tx input").val("AM");
}
}
}
// handle clicking on the arrow icons
var cur_next = ele_next.find(".action-next");
var cur_prev = ele_next.find(".action-prev");
$(cur_prev).add(cur_next).on("click", function() {
var cur_ele = $(this);
if (cur_ele.parent().attr("class") == "time") {
change_time(cur_ele);
} else if (cur_ele.parent().attr("class") == "mins") {
change_mins(cur_ele);
} else {
if(settings.show_meridian){
change_meri(cur_ele);
}
}
});
});
};
}(jQuery));
jquery로 작동하는 방식이다. 테스트 해보다가 코드를 건드렸었는데 원본 코드를 찾아보는 걸 추천한다.
AM, PM이 있어 12시에서 1시로 넘어가는 함수가 포인트다.
또, min은 0부터 59까지 구현하고 59->0으로 넘어간다.
2. 결과
만족스럽게 나온다.
따로 hour만, min의 값만 얻기 위해서 js파일을 이것저것 건드려봤었는데 그냥 select 코드로 하나하나 입력하는 게 더 간단하고 빠르다는 걸 알아냈다. 굳이 timepicki를 이용할 필요가 없다.
3. 참고
http://senthilraj.github.io/TimePicki/
TimePicki - jQuery Timepicker plugin Demo and documentation
senthilraj.github.io
'[HTML]' 카테고리의 다른 글
| [html/javascript] 모달 팝업창 구현 (0) | 2021.05.14 |
|---|
